AI Full-Stack · Section 6

Classical Machine Learning

Level
intermediate
Read
55 min
Concepts
6

The non-deep-learning models that still win on most structured, tabular problems: the core supervised families — linear/logistic regression, decision trees, random forests, gradient boosting, nearest neighbors — compared on nonlinearity, scaling and interpretability; SVMs and Naive Bayes as two more classification approaches with very different philosophies; k-means, hierarchical and density-based clustering for unsupervised grouping; PCA for compressing correlated features; the fundamentals ranking and recommendation systems build on; and a trade-off framework for choosing a model on interpretability, training cost, prediction cost and data volume, not accuracy alone.

What is true here

  1. Linear models are interpretable but assume near-linearity; trees/forests/boosting capture nonlinearity automatically
  2. Gradient boosting usually wins tabular accuracy; k-NN needs no training but is slow to predict at scale
  3. SVMs maximize the margin between classes; Naive Bayes works well despite its false independence assumption
  4. K-means needs k chosen in advance; density-based clustering needs no k and handles outliers natively
  5. Model choice trades interpretability, training cost, prediction cost and data volume — not accuracy alone

What you will be able to do

  • Choose between linear, tree-based and instance-based models for a described tabular problem
  • Explain why tree-based models need no feature scaling and linear models do
  • Pick a clustering method based on whether k is known and whether outliers must be handled
  • Explain what PCA compresses and what it costs in interpretability
  • Weigh interpretability, training cost, prediction cost and data volume when choosing a model, not accuracy alone

Classical ML models and their trade-offs

The supervised and unsupervised models that predate deep learning and remain the strongest choice for most tabular data — plus the trade-off framework for picking between them.

The core supervised model families

coreintermediate

Linear regression predicts a number as a weighted sum of features. Logistic regression predicts a probability for classification. A decision tree splits data by asking a sequence of yes/no questions. A random forest averages many trees. Gradient boosting builds trees one at a time, each correcting the last one's errors. Nearest neighbors predicts using the most similar training examples.

Think of it as

These six models split into two families with very different behavior. Linear regression and logistic regression are linear models: fast, interpretable (each feature's weight says how much it matters and in which direction), and correct only if the true relationship really is close to linear in the features you gave it — they need you to do the nonlinear work yourself, often through feature engineering. Decision trees, random forests and gradient boosting are tree-based models: they split on thresholds, so they need no scaling, capture nonlinear relationships and feature interactions automatically, and are usually the strongest choice for structured tabular data. A single decision tree overfits easily; a random forest averages many trees trained on random subsets of data and features, trading a little bias for much lower variance; gradient boosting builds trees sequentially, each one targeting the previous ensemble's errors, which usually reaches higher accuracy than a random forest but is more sensitive to hyperparameters and easier to overfit if not tuned. Nearest neighbors is neither — it does no real 'training' at all, just stores the data and, at prediction time, looks up the closest stored examples; simple and interpretable, but slow to predict on large datasets and sensitive to feature scale.

python
from sklearn.linear_model import LinearRegression, LogisticRegression
from sklearn.tree import DecisionTreeClassifier
from sklearn.ensemble import RandomForestClassifier, GradientBoostingClassifier
from sklearn.neighbors import KNeighborsClassifier

# same interface across all of them:
model.fit(X_train, y_train)
predictions = model.predict(X_val)

What we're doing: Compare four model families on the same tabular classification problem to see the trade-offs in practice.

compare_models.pypython
from sklearn.linear_model import LogisticRegression
from sklearn.ensemble import RandomForestClassifier, GradientBoostingClassifier
from sklearn.neighbors import KNeighborsClassifier
from sklearn.metrics import accuracy_score
import time

models = {
    "logistic_regression": LogisticRegression(max_iter=1000),
    "random_forest": RandomForestClassifier(n_estimators=200),
    "gradient_boosting": GradientBoostingClassifier(),
    "knn": KNeighborsClassifier(n_neighbors=5),
}

for name, model in models.items():
    start = time.perf_counter()
    model.fit(X_train_scaled, y_train)
    train_time = time.perf_counter() - start
    acc = accuracy_score(y_val, model.predict(X_val_scaled))
    print(f"{name:20s} acc={acc:.3f}  train={train_time:.2f}s")
8
Logistic regression usually trains fastest here, and its accuracy is a useful baseline — if a tree-based model barely beats it, the relationship may genuinely be close to linear.
10
Gradient boosting typically reaches the highest accuracy on structured tabular data like this, at the cost of a longer training time and more hyperparameters worth tuning.
15
k-NN's "training" time is nearly instant — it just stores the data — but its prediction time grows with dataset size, which this loop does not even measure separately.

Why this works: No single model wins universally — the honest way to choose is to actually compare a small, representative set on the real data, because the theoretical trade-offs (linear vs nonlinear, interpretable vs accurate, fast-train vs fast-predict) only tell you the shape of the decision, not which model wins on this specific dataset.

Choosing a model family from its reputation instead of comparing it on the actual data

Wrong

text
"Gradient boosting always wins Kaggle,
so we'll use it here too."
# No baseline comparison. No check that this
# dataset resembles the ones where that's true.

Better

text
Start with a fast, interpretable baseline
(logistic regression or a single tree).
Compare 2-3 model families on the real data
and a real validation split before committing.
Pick based on the measured trade-off, not reputation.

What you see: A team spends significant tuning effort on a gradient boosting model that ends up barely outperforming a five-line logistic regression baseline that was never tried — reputation, not measurement, drove the choice.

Why: A model family's general reputation comes from its behavior across many datasets; any single dataset can be the exception — small, close-to-linear, or too small for a complex model to have an advantage. A cheap baseline comparison catches this in minutes; skipping it can cost days of tuning a model that was never the right choice.

Six models, compared on four practical axes

Six models, compared on four practical axes
ModelHandles nonlinearity?Needs scaling?Interpretability
Linear regressionNo (without manual feature engineering)YesHigh — weights are direct
Logistic regressionNo (without manual feature engineering)YesHigh — weights are direct
Decision treeYesNoHigh — a readable rule sequence
Random forestYesNoMedium — feature importance, not individual rules
Gradient boostingYesNoMedium — feature importance, not individual rules
k-nearest neighborsYesYesMedium — reasoning is "similar to these examples"

Remember: Linear/logistic regression: fast, interpretable, assumes near-linearity. Trees/forests/boosting: capture nonlinearity automatically, no scaling needed, boosting usually wins accuracy but is most hyperparameter-sensitive. k-NN: no real training, slow at prediction time, scale-sensitive. Compare on the real data — reputation is not a substitute for a baseline.

See also: ml task types · model tradeoffs and assumptions · classification metrics

Support vector machines and Naive Bayes

standardintermediate

A support vector machine (SVM) finds the boundary between classes that leaves the widest possible margin to the nearest points of each class. Naive Bayes predicts a class using Bayes' theorem, assuming every feature is independent of every other given the class — an assumption that is usually false but works surprisingly well in practice.

Think of it as

SVMs and Naive Bayes solve classification from opposite philosophies. An SVM looks for the single boundary that maximizes the margin — the distance to the nearest point of each class — which tends to generalize well because it is not just any boundary that separates the classes, but the one furthest from both. With a kernel trick, an SVM can find nonlinear boundaries by implicitly mapping data into a higher-dimensional space where a straight boundary does separate the classes. Naive Bayes instead computes, for each class, how likely the observed features would be if that class were true (using Bayes' theorem), and picks the most likely class — its 'naive' assumption is that features are conditionally independent given the class, which is rarely exactly true (word order in text, for instance, violates it) but the method still performs well because it only needs the RANKING of class probabilities to be right, not their exact values. Naive Bayes is a classic choice for text classification (spam filtering) because it is fast, needs little data, and the independence assumption hurts less than it sounds like it should.

python
from sklearn.svm import SVC
from sklearn.naive_bayes import MultinomialNB

svm = SVC(kernel="rbf").fit(X_train, y_train)       # nonlinear boundary via kernel
nb = MultinomialNB().fit(X_train_counts, y_train)     # fast text-classification baseline

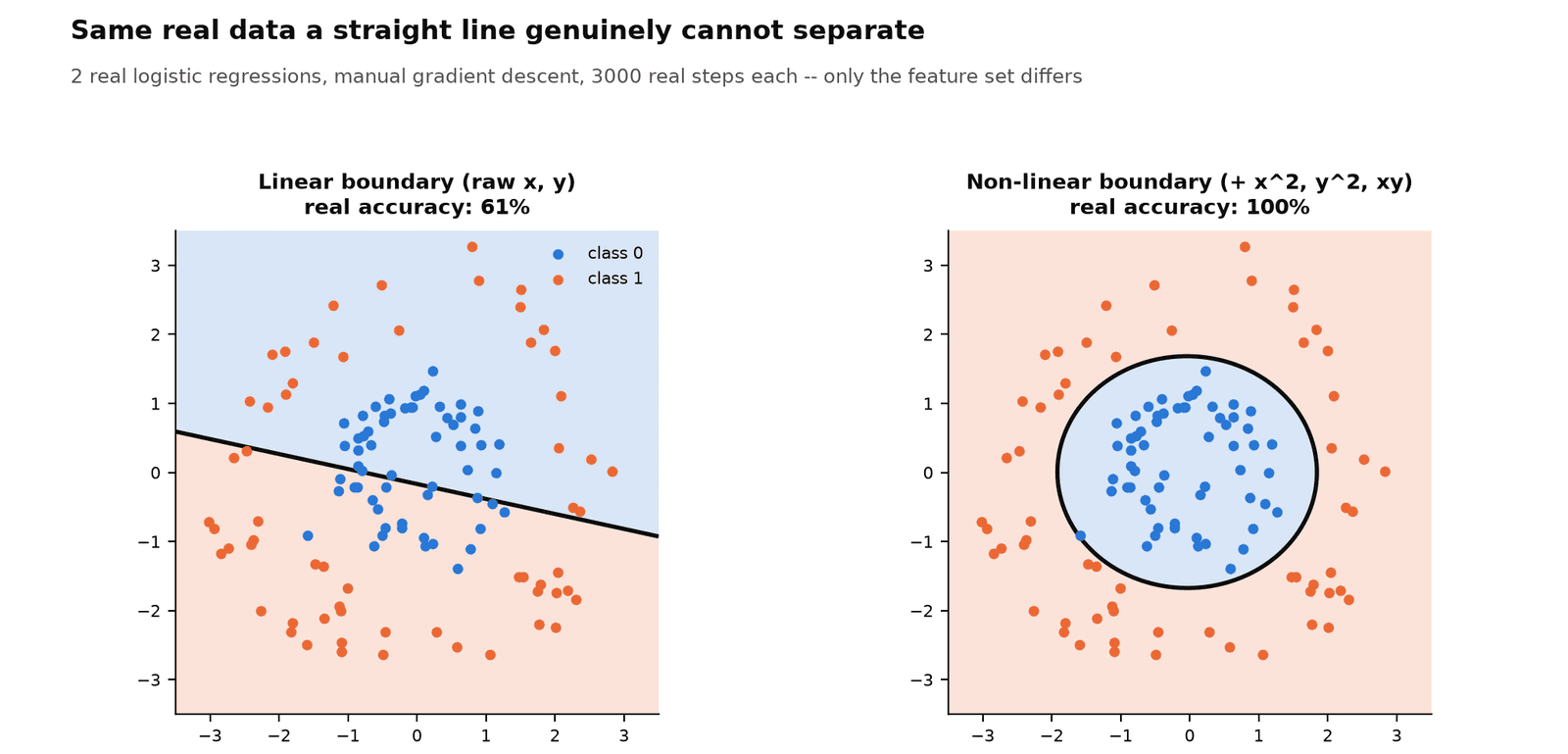

Same real data a straight line genuinely cannot separate

2 real logistic regressions, manual gradient descent, 3000 real steps each — only the feature set differs

Generated from real data — src/content/_image-generators/teach-decision-boundaries.py

  • Two panels showing the same real two-class data, arranged as an inner circle of one class surrounded by a ring of the other.
  • Left: a real logistic regression trained on raw x and y produces a straight-line boundary, reaching only 61% real accuracy — it cannot separate a ring from its center.
  • Right: a real logistic regression trained with added polynomial features (x^2, y^2, xy) produces a curved, circular boundary, reaching 100% real accuracy.

Remember: SVM finds the widest-margin boundary between classes, optionally nonlinear via a kernel. Naive Bayes uses Bayes' theorem with a (usually false) independence assumption, and still works well because it only needs the ranking right, not the exact probabilities.

See also: probability foundations · core supervised model families

Clustering: k-means, hierarchical and density-based

standardintermediate

K-means groups data into a fixed number of clusters, k, by repeatedly assigning points to the nearest cluster center and recomputing centers. Hierarchical clustering builds a tree of nested clusters, from every point alone up to one giant cluster, and you pick where to cut it. Density-based clustering finds clusters as dense regions separated by sparse ones, without needing to choose k in advance.

Think of it as

The three methods differ mainly in what you have to specify up front and how they handle irregular shapes. K-means requires choosing k, the number of clusters, before running it — and it assumes clusters are roughly round and similarly sized, which fails visibly on elongated or unevenly-sized real clusters. Hierarchical clustering avoids choosing k up front — it builds the full tree of nested groupings (a dendrogram) and lets you cut it at whatever level produces the number of clusters you want, which also lets you inspect the whole hierarchy of groupings at once, not just one flat answer. Density-based clustering (like DBSCAN) does not require k either, and it naturally finds clusters of arbitrary shape by growing outward from dense regions — its real advantage is handling noise: points in sparse regions are labeled as outliers rather than forced into the nearest cluster, which k-means and hierarchical clustering cannot do.

python
from sklearn.cluster import KMeans, AgglomerativeClustering, DBSCAN

kmeans = KMeans(n_clusters=5).fit(X)               # must choose k
hier = AgglomerativeClustering(n_clusters=5).fit(X) # or cut a dendrogram
dbscan = DBSCAN(eps=0.5, min_samples=5).fit(X)      # no k; labels noise as -1

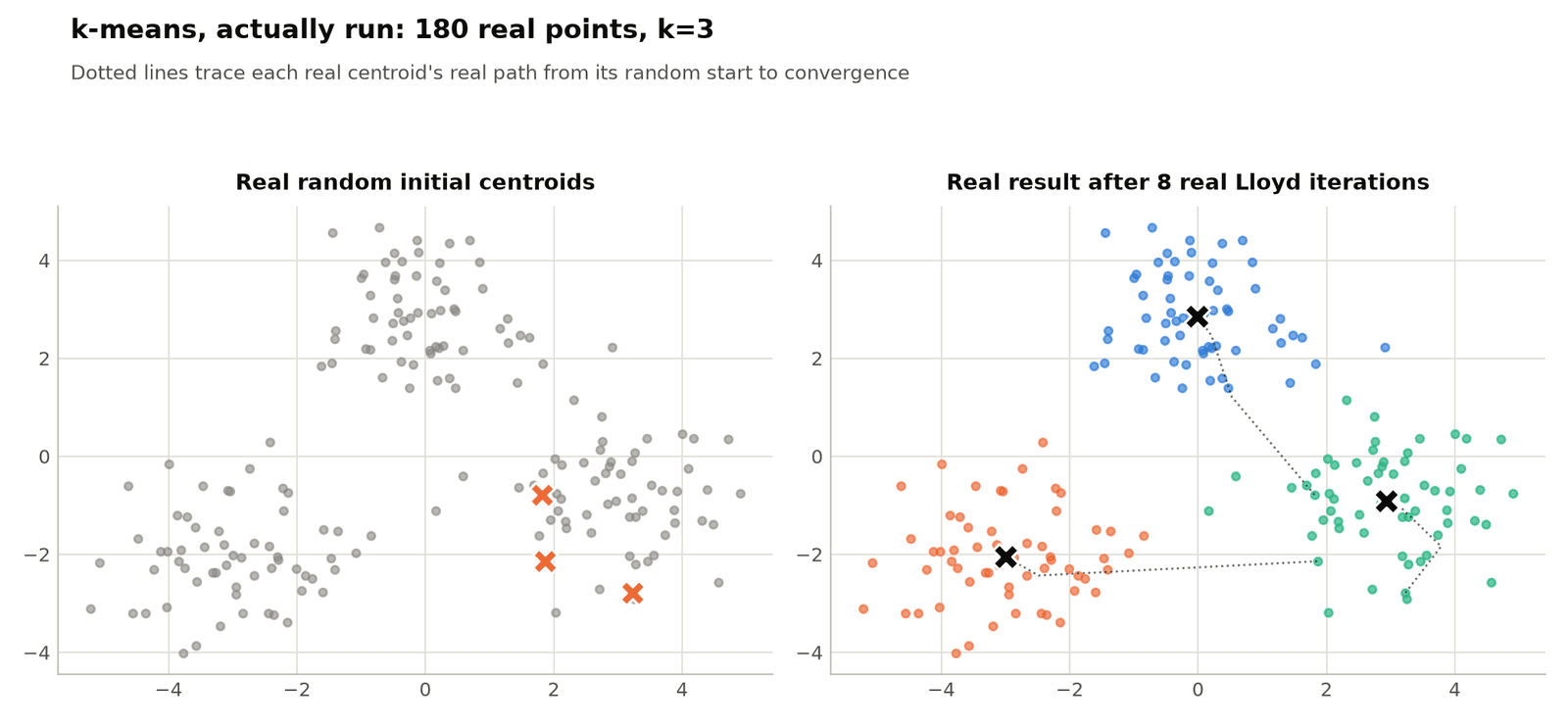

k-means, actually run: 180 real points, k=3

Dotted lines trace each real centroid's real path from its random start to convergence

Generated from real data — src/content/_image-generators/teach-kmeans-clustering.py

  • Left panel: 180 real synthetic points in three loose groups, with three real randomly-initialized centroids marked as X.
  • Right panel: the same points, now colored by their real final cluster assignment after real Lloyd's-algorithm iterations, with the real converged centroids and their real paths from start to finish.
  • k-means converged after 8 real iterations.

Three clustering methods, by what they require and handle

Three clustering methods, by what they require and handle
MethodRequires k?Cluster shape assumptionHandles outliers?
K-meansYesRoughly round, similar sizeNo — every point assigned to a cluster
HierarchicalNo (choose cut level)Flexible, inspectable at every levelNo — every point assigned
Density-based (DBSCAN)NoArbitrary shapeYes — sparse points labeled as noise

Remember: K-means needs k chosen up front and assumes round, similar-sized clusters. Hierarchical clustering builds a full tree, letting you choose the cut level. Density-based clustering needs no k, finds arbitrary shapes, and is the only one that separates outliers from real clusters.

See also: ml task types

PCA and dimensionality reduction

standardintermediate

Principal component analysis (PCA) compresses many correlated features into fewer new features, called components, that capture as much of the original variation as possible. Each component is a weighted combination of the original features, ordered so the first component captures the most variation, the second the next most, and so on.

Think of it as

PCA works because real features are often correlated — square footage and number of bedrooms both roughly track 'how big is this house' — so some of that redundancy can be compressed away with little information lost. PCA finds new axes (components), each a linear combination of the original features, chosen so the data's variation is spread out as efficiently as possible along the first few axes. Keeping only the first k components discards the axes with the least variation, which is usually the least informative. The trade-off is interpretability: 'component 2' has no obvious real-world meaning the way 'bedrooms' does, since it is a mix of several original features. PCA is most useful for visualization (compressing to 2-3 dimensions to plot data), for speeding up training on very high-dimensional data, and for removing correlated redundancy before feeding data to a model that assumes independent features.

python
from sklearn.decomposition import PCA

pca = PCA(n_components=0.95)   # keep enough components for 95% of variance
pca.fit(X_train)                # fit on train only
X_train_reduced = pca.transform(X_train)
X_val_reduced = pca.transform(X_val)   # apply, never refit

print(pca.explained_variance_ratio_)   # how much each component captures

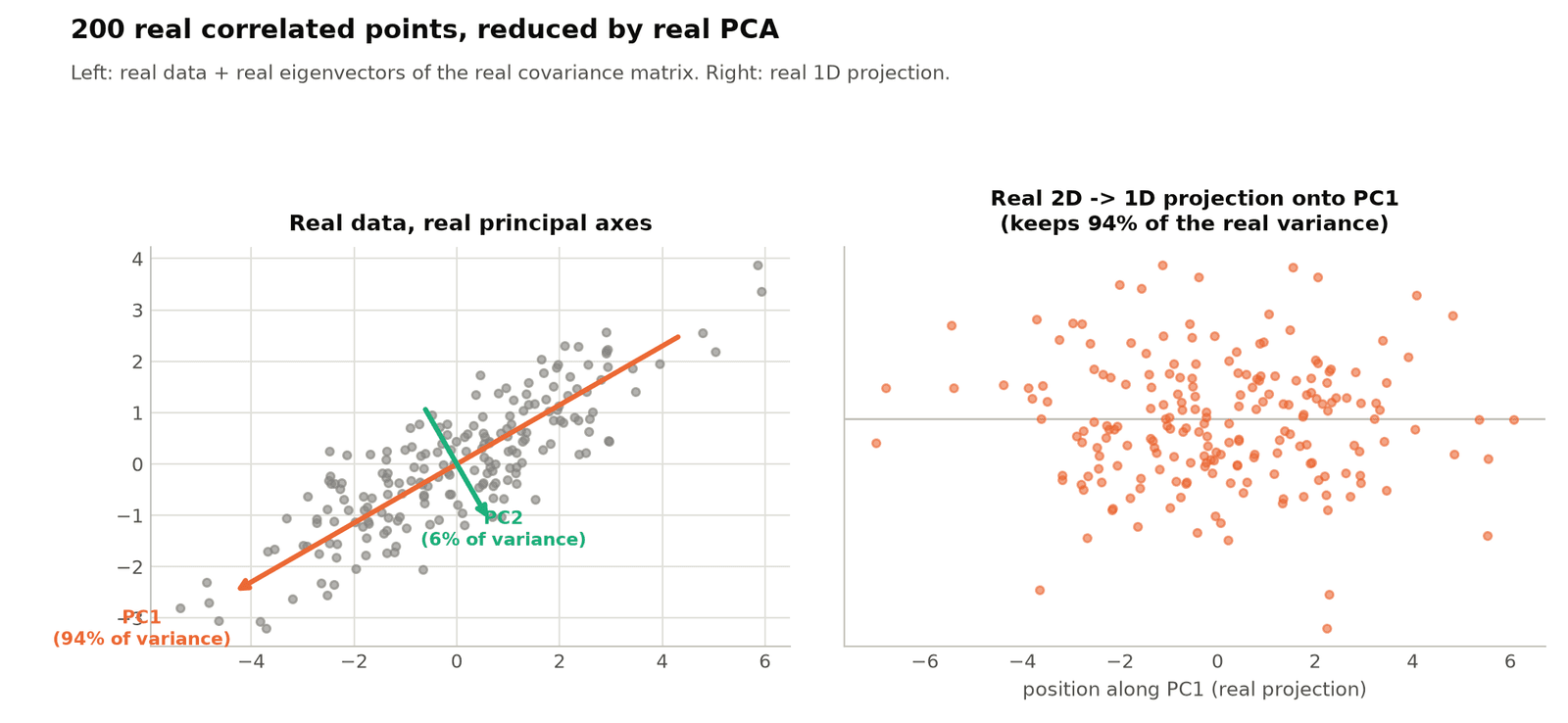

200 real correlated points, reduced by real PCA

Left: real data + real eigenvectors of the real covariance matrix. Right: real 1D projection.

Generated from real data — src/content/_image-generators/teach-pca-projection.py

  • Left panel: a scatter plot of 200 real correlated 2D points, with two arrows showing the real principal component directions computed from the real covariance matrix.
  • PC1 captures 94% of the real variance; PC2 captures the remaining 6%.
  • Right panel: the same 200 points, each real-projected onto the single PC1 axis, showing the real 2D-to-1D reduction.

Remember: PCA compresses correlated features into fewer, ordered components that capture the most variation — useful for visualization and speed, at the cost of interpretability. Fit on training data only, like any other preprocessing step.

See also: feature selection and dimensionality reduction · clustering methods

Ranking and recommendation fundamentals

standardintermediate

A ranking model orders a list of items by relevance rather than predicting one label per item. A recommendation system suggests items a specific user is likely to want, usually by combining collaborative filtering (what similar users liked) with content-based filtering (what this item is similar to, based on its own features).

Think of it as

Ranking is a different problem shape than classification or regression, because what matters is the ORDER of items relative to each other, not each item's individual score being exactly correct — a ranking model that consistently puts the best results first is doing its job even if its raw scores are miscalibrated. This is why ranking metrics (§7) compare ordering, not absolute error. Recommendation systems are ranking applied to 'what should this user see next,' and they typically blend two signals: collaborative filtering infers preference from patterns across many users ('people who liked X also liked Y'), which needs no understanding of item content but suffers on new items with no interaction history yet (the cold-start problem); content-based filtering recommends items similar to ones a user already engaged with, based on the items' own features, which handles new items fine but tends to over-narrow recommendations to what a user has already shown interest in. Most production systems combine both, plus additional signals (recency, popularity, business rules), rather than relying on either alone.

text
collaborative filtering: "users like you also liked..."   -> cold-start problem for new items
content-based filtering: "similar to items you engaged with" -> over-narrowing problem
production systems: blend both + recency + popularity + business rules

Remember: Ranking optimizes relative order, not absolute score accuracy. Collaborative filtering uses cross-user patterns (weak on new items); content-based filtering uses item similarity (weak on narrowing too tightly). Real systems blend both.

See also: ranking metrics

Model trade-offs and assumptions, as one decision

standardintermediate

Choosing a model is not "which one is best" — it is a trade-off between accuracy, interpretability, training cost, prediction cost, and how much data you have. The right choice depends on which of those actually matters for the problem at hand.

Think of it as

Every model family from this section trades these five factors differently, and a real choice weighs the ones the project actually cares about. Interpretability matters when a decision needs to be explained — to a regulator, a doctor, or a customer disputing a denial — and linear models and single decision trees win there; ensembles (random forest, gradient boosting) and neural networks trade interpretability for accuracy. Training cost matters when a model needs to be retrained often; linear models and k-NN train almost instantly, gradient boosting and deep learning can take much longer. Prediction cost matters at serving scale; k-NN's prediction cost grows with dataset size, while a trained linear model or tree predicts in constant time regardless of how much data it was trained on. Data volume matters because complex models (deep learning, large ensembles) need more data to avoid overfitting than simple ones. The failure mode this concept exists to prevent is picking a model on accuracy alone, in a benchmark, and discovering only in production that its prediction latency or its inability to explain a decision is what actually mattered.

text
pick a model by asking, in this order for THIS project:
  1. does a decision need to be explained to a person? -> weigh interpretability
  2. how often does it retrain?                          -> weigh training cost
  3. what's the serving-time latency budget?             -> weigh prediction cost
  4. how much labeled data do we actually have?          -> weigh data requirements
  5. only then: which model is most accurate on our data

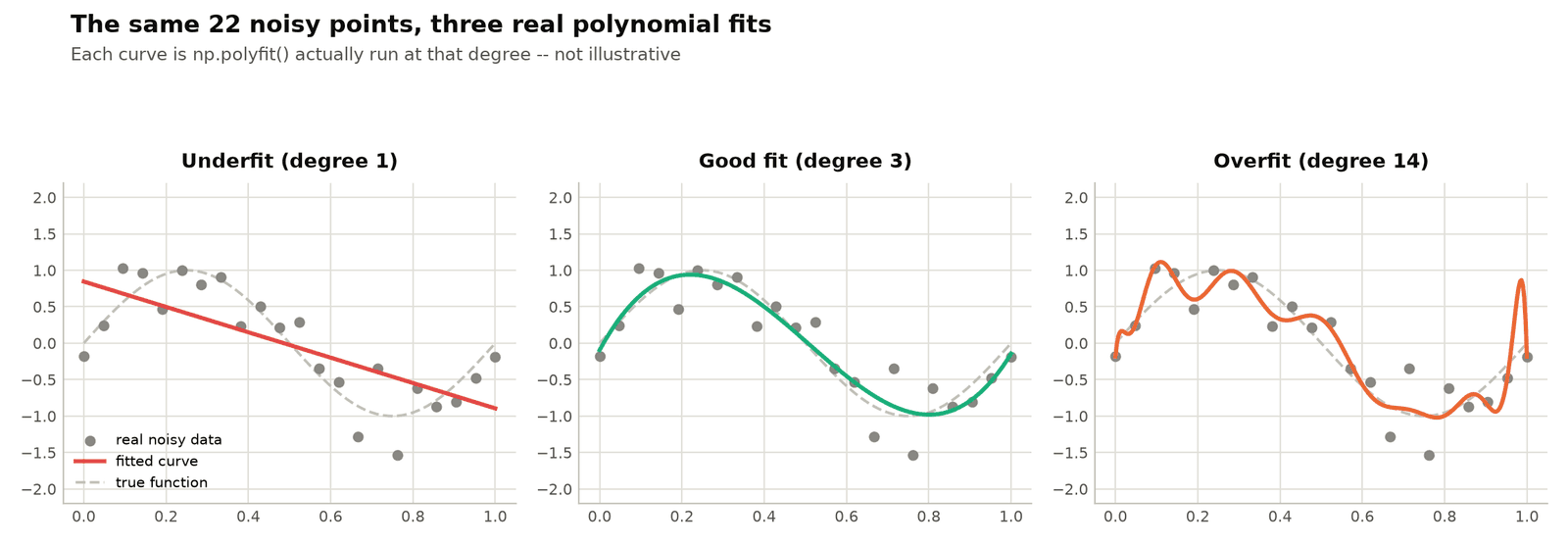

The same 22 noisy points, three real polynomial fits

Each curve is np.polyfit() actually run at that degree, on the same real noisy data

Generated from real data — src/content/_image-generators/teach-overfitting-underfitting.py

  • Three panels, each showing the same 22 real noisy data points with a different real polynomial fit and the true sine function for reference.
  • Underfit (degree 1): a straight line that misses the real curve of the data badly.
  • Good fit (degree 3): a smooth curve that tracks the true underlying sine function closely.
  • Overfit (degree 14): a wild, wiggly curve that chases every noisy point, including the noise itself.

The five factors, and which models are strong on each

The five factors, and which models are strong on each
FactorStrongWeak
InterpretabilityLinear/logistic regression, single decision treeRandom forest, gradient boosting, deep learning
Training speedLinear models, k-NN (no real training)Gradient boosting, deep learning
Prediction speed at scaleLinear models, trees, forests, boostingk-NN (grows with dataset size)
Works with little dataLinear models, Naive BayesDeep learning, large ensembles

Remember: Model choice trades interpretability, training cost, prediction cost, and data requirements against accuracy — the right model is whichever wins on the factors this specific project actually needs, not whichever tops a generic benchmark.

See also: core supervised model families · business metrics vs model metrics
